Concentric Reducer & Eccentric Reducer

Steel Pipe reducers are one of the many types of fitting that can be used to control the flow within a piping system. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems. Pipe reducers are widely available in a variety of materials as per the demands of industries and also available in many dimensions.

1. Steel Pipe Reducer

A pipe reducer is a pipe fitting that is used in the pipelines to reduce its size from large to small-bore in accordance with the inner diameter. It reduces the size of the pipe in the pipe system, from one size to another. Pipe reducers may frequently be used to connect pipes of different sizes.

In a piping system, there are two major types of reducers: concentric reducers and eccentric reducers.

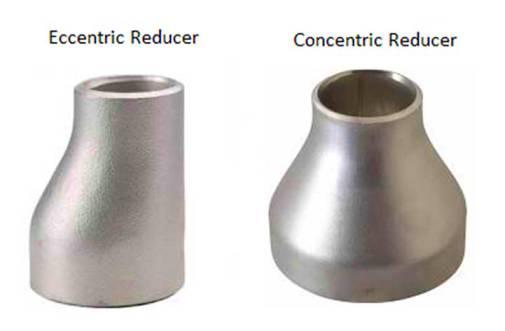

stainless-Steel-Reducer-Manufacturers-Suppliers

2. Types of Pipe Reducer

The concentric reducer means the pipes have matched center lines, and the eccentric reducer has mis-matched center lines. Both of these have a consequence regarding flow.

Concentric Reducers are useful to connect pipes as well as tubes on the same axis.
The concentric reducers are able to connect pipes of varying size, but it has a common centreline. This type of reducer offers an in-line conical passage between different dimensional pressurized pipes. These concentric reducers are available in the seamless and welded type of construction.

Estan pipe fittings Concentric Reducer ASME B16.9 A234 WPB.500x500 image

Unlike concentric reducers, Eccentric reducers have a offset center line.
An eccentric reducer type of pipe fitting is produced with the slighter outlet off center to the bigger end. Eccentric reducers are frequently used to avoid trapping air within the system, so they are often used when both air and liquids may be flowing together. This eccentric pipe reducers are making the simple connection between pipes of different sizes.

Estan pipe fittings Eccentric Reducer ASME B16.9 A403WP316L.500x500 image

3. Concentric Reducer Dimensions

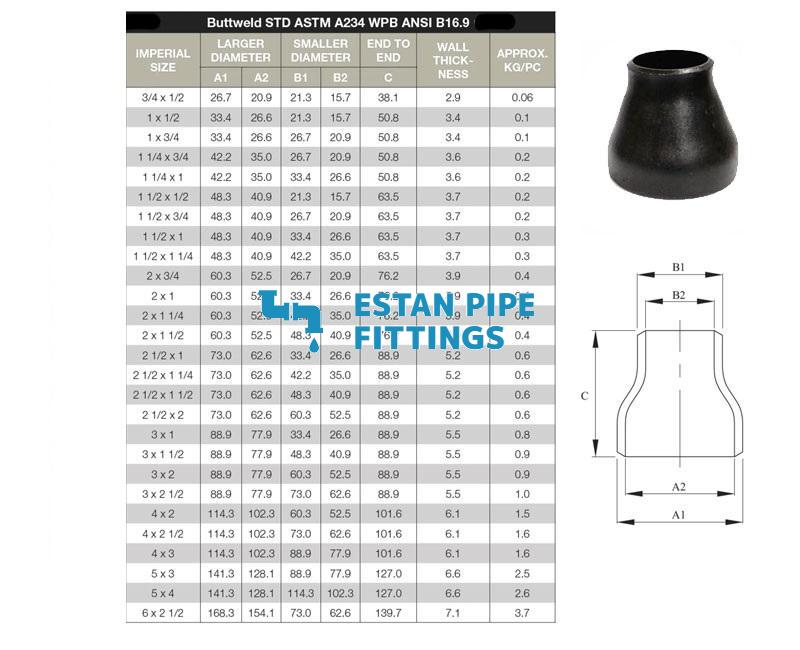

astm-a234-wpb-concentric reducer-dimensions

Size: 3/4” to 48”
Standard: ASME/ANSI B16.9, B36.19
Thickness: Sch 10S, 20, STD, 40S, XS, 80S, 100, 120, 140, 160
Technical: Seamless & Weld Eccentric Reducer
Surface: Pickling and Solution Heat Treatment.

4. Eccentric Reducer Dimensions

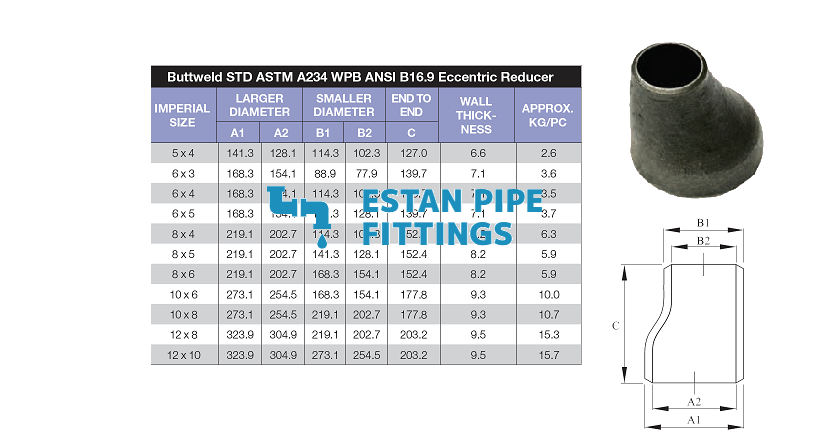

eccentric reducer dimensions

Size: 3/4” to 48”
Standard: ASME/ANSI B16.9, B36.19
Thickness: Sch 10S, 20, STD, 40S, XS, 80S, 100, 120, 140, 160
Technical: Seamless & Weld Eccentric Reducer
Surface: Pickling and Solution Heat Treatment.

5. Concentric Reducer VS Eccentric Reducer

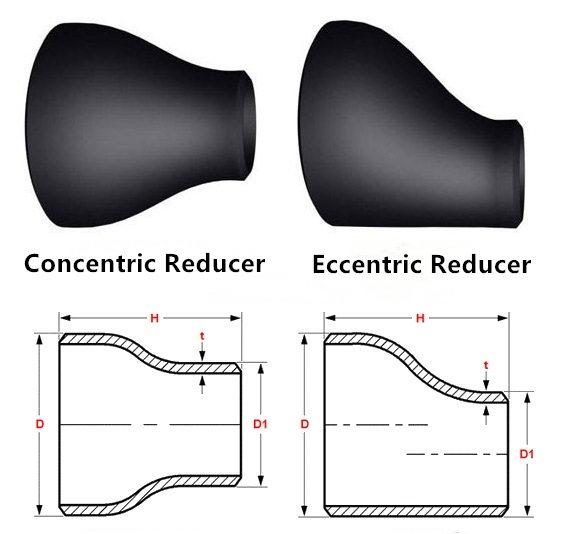

Concentric Reducer VS Eccentric Reducer
  • Concentric reducers change kindly between the pump and piping.
  • Concentric reducers help to convey slurries and abrasive fluids.
  • Concentric reducers are useful to use in operations where corrosion is present.
  • Concentric reducers are beneficial to use where different ratings and to wear protection is required in conveying between flanges or pipes.
  • Concentric reducers are perfectly suitable to use in the exclusion of the pump.
  • Eccentric reducers help to connect big pipes with small pipes.
  • Eccentric reducers decrease noise and vibration.
  • Eccentric reducers require minimum setting up space.
  • Eccentric reducers can also absorb noise that is created by pipe walls and fluid tolerated.
  • Eccentric reducers have minimum turbulence entrapment.
  • Eccentric reducers are utilized with the flat side up in pump pressure to minimize cavitation.

6. Common Used Steel Pipe Reducer Materials

We carry a full line of pipe reducers including concentric reducers and eccentric reducers that meet strict certifications for today’s pipe systems. Our high-quality reducers come in a variety of sizes and schedules starting from S/5 to S/80, SCH XXH.

Concentric Reducer | Butt Weld Fitting | A234 WPB |
Eccentric Reducer | Butt Weld Fitting | A234 WPB |
A234 WPB – The standard specification for piping fittings of wrought carbon steel and alloy steel for moderate and high temperatures.

Concentric Reducer | Butt Weld Fitting | WPL6 |
Eccentric Reducer | Butt Weld Fitting | WPL6 |
WPL6 – The standard specification for piping fittings of wrought carbon steel and alloy steel for low-temperature applications.

Concentric Reducer | Butt Weld Fitting |SS304 |
Eccentric Reducer | Butt Weld Fitting | SS304 |
SS304 – A common standard for stainless steel due to its malleability
high corrosive resistance weld-ability

Concentric Reducer | Butt Weld Fitting |SS316 |
Eccentric Reducer | Butt Weld Fitting | SS316 |
SS316 – A molybdenum stainless steel that provides excellent tensile
creep and stress-rupture strengths at elevated temperatures
