1. What is a Lateral Tee?

A Lateral Tee is one tee pipe fittings, which is similar to a tee but has a side opening outlet branch at a 45 degree angle. It is designed to provide 45 degree or other degrees branches for the main pipe. Its connection type could be butt weld, socket weld, and threaded.

2. Steel Lateral Tee Types

Like we said above, Lateral Tee connection type could be butt weld, socket weld, and threaded. And accordingly, butt weld lateral tee is manufactured based on ASME B16.9, while the socket weld lateral tee and threaded lateral tee are confirmed to ASME B16.11. To summarize, It is a special type of pipe tee.

2.1 Butt Weld Lateral Tee

Lateral tee typically provides sleek flow ways and there’s no turbulence or entrapment.
Used for waste, installation.
Used for drain pipe, water, gas, oil, etc.
Lateral tees are accustomed to offering high integrity mechanical connections in various pumps applications.
Used for positive pressure, and vacuum applications.
Used in radical high purity systems.

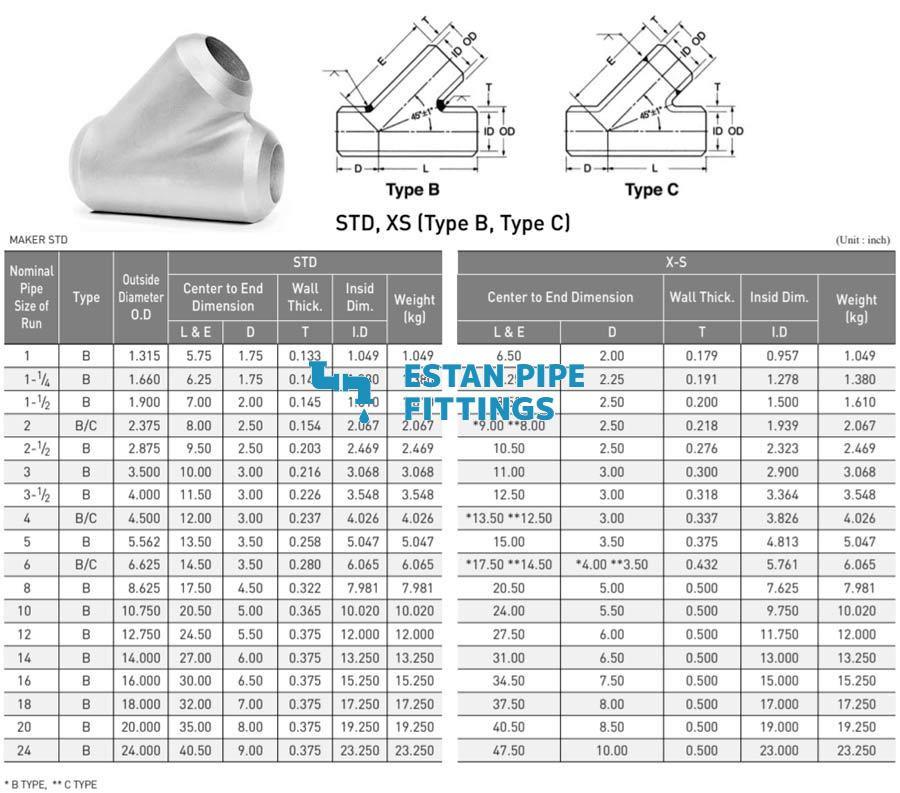

Butt Weld Lateral Tee Dimensions

Diameter Range: NPS 1/2″ – 48″ / DN15 – 1200
Wall Thickness: Sch10S, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard: ASME B16.9

2.2 Socket Weld Lateral Tee

Forged Socket Weld Fittings 45 degree Lateral Tee standards according to ASME B16.11 / BS3799. It is designed for wide use in different industries like oil refineries, chemical processing, petrochemical and many other industries.

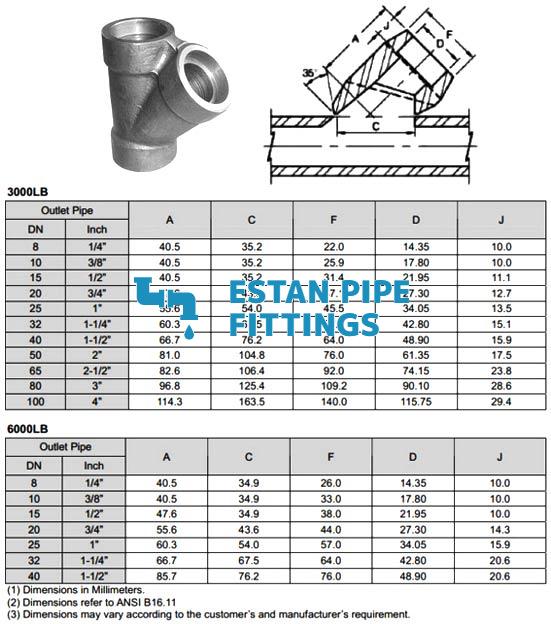

Socket Weld Lateral Tee Dimensions

Size: 1/8″~4″
Class: 3000LB, 6000LB, etc.
Standards:ASME 16.11
Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel.

2.3 Threaded Lateral Tee

Like Socket Weld fittings, threaded lateral tee fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller. You can see it from the below dimension image.

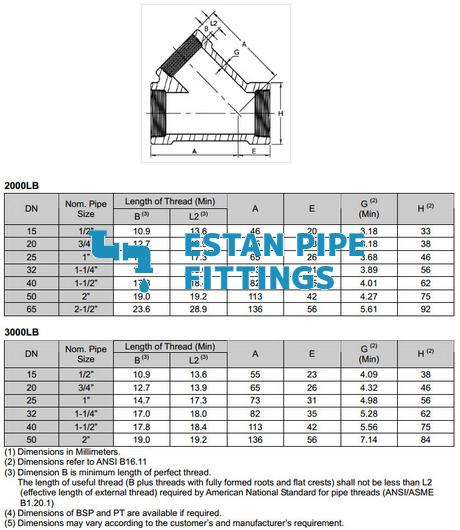

Threaded Lateral Tee Dimensions

Size: 1/8″~4″
Class: 2000LB, 3000LB, etc.
Standards:ASME 16.11
Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

3. Common Uesd Materials of ASME B16.9 Lateral

Carbon Steel Lateral Tee	ASTM A234 WPB Lateral Tee Fitting ASTM A420 WPL6 Lateral Tee B16.9 WPHY 42 Lateral Tee WPHY 52 Lateral Tee Stainless Steel WPHY 56 Lateral Tee Fitting WPHY 60 45 Lateral Tee WPHY 65 Bw Lateral Tee WPHY 70 Lateral Cross Tee
Stainless Steel Lateral Tee Fitting	ASTM A403 WP304 Lateral Tee B16.9 ASTM A403 WP304L Lateral Cross Tee ASTM A403 WP316 45 Lateral Tee ASTM A403 WP316L Lateral Tee B16.9 ASTM A403 WP317 Lateral Cross Tee ASTM A403 WP317L Lateral Tee Fitting ASTM A403 WP321 Lateral Tee B16.9 ASTM A403 WP321H Lateral Tee Stainless Steel ASTM A403 WP347 Lateral Tee ASTM A403 WP347H Bw Lateral Tee
Alloy Steel Lateral Tee B16.9	ASTM A234 WP5 Lateral Tee Stainless Steel ASTM A234 WP9 45 Lateral Tee ASTM A234 WP11 Lateral Tee B16.9 ASTM A234 WP22 Lateral Cross Tee ASTM A234 WP91 Lateral Tee B16.9

4. Latrolet- another Lateral Fitting

We can manufacture two lateral pipe fittings, which contain lateral tee and latrolet (also called Lateral Outlet). The latrolet standard is MSS-SP97, the same as the other branch fittings. Its connection end can also be butt weld, socket weld, and threaded.
