Carbon Steel Weld Fittings

The Industry Leader in Carbon Steel Weld Fittings Products from 1/2" thru 48"

1. Carbon Steel Weld Fittings Manufacturer

Welded pipe fittings in carbon steel and stainless steel are the joining components that make possible the assembly of valves, pipes, and equipment onto the piping system. Welded fittings compliment pipe flanges in any piping system and allow:

  • Change direction of flow in a piping system
  • Connect or joint pipes and equipment
  • Provide branches, access, and takeoffs for auxiliary equipment

All butt weld fittings have beveled ends as per ASME B16.25 standard. This helps create a full penetration weld without any extra preparation needed for the butt weld fitting.

carbon steel weld fittings manufacturer image

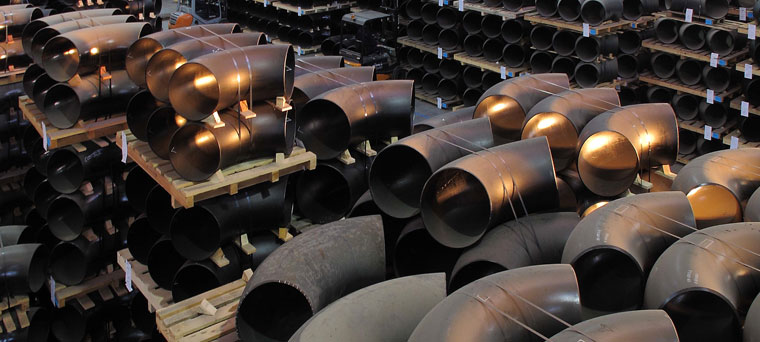

2. Carbon Steel Weld Fittings Standards

Welded pipe fittings are made as per ASME spec B16.9. ASME B16.9 covers factory made wrought steel butwelding fittings in sizes 1/2″ to 48″. This standard however does not cover low pressure corrosion resistant buttwelding fittings. See MSS SP-43, Wrought Stainless Steel Butt-Welding Fittings.

3. Carbon Steel Weld Fittings Specifications

Specifications

ASTM A234 / ASME SA234

Size

1/8” NB TO 48” NB.

Standards

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Thickness

Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Type

Short Radius & Long radius 90 Degree Elbows, 3R 90 Degree Elbow, 45 Degree Elbows, 3R 45 Degree Elbows, Short Radius 180 Degree Elbows, Long Radius 180 Degree Elbows, Reducing Elbows, Concentric & Eccentric Reducers, Tees, Reducing Tees, Stub Ends,Caps, Crosses, Laterals, Return Bends.

4. Carbon Steel Weld Fittings Materials

Common material for butt weld fittings are A234 WPB (A & C also available), High Yield Carbon Steel, Stainless Steel 304 and 316 and Nickel Alloys.

A234 WPB is the most common material used for carbon steel butt welded fittings.

Type of ASTM A234 Carbon Steel pipe fittings Size ASTM A234 WPB Carbon Steel 90° Elbow ASTM A234 WPB Carbon Steel 45° Elbow ASTM A234 WPB Carbon Steel Long Radius Elbow ASTM A234 WPB Carbon Steel Short Radius Elbow ASTM A234 WPB Carbon Steel Reducing Elbow ASTM A234 WPB Carbon Steel 3D Elbow ASTM A234 WPB Carbon Steel 5D Elbow ASTM A234 WPB Carbon Steel Tee (Equal & Unequal) ASTM A234 WPB Carbon Steel Cross ASTM A234 WPB Carbon Steel Reducing Crosses ASTM A234 WPB Carbon Steel Pipe Cap ASTM A234 WPB Carbon Steel Stub Ends (Long & Short) ASTM A234 WPB Carbon Steel 180° LR Return Bends ASTM A234 WPB Carbon Steel 180° SR Return Bends ASTM A234 WPB Carbon Steel Pipe Bends ASTM A234 WPB Carbon Steel End Caps ASTM A234 WPB Carbon Steel Reducers ASTM A234 WPB Carbon Steel Concentric Reducer ASTM A234 WPB Carbon Steel Eccentric Reducer ASTM A234 WPB Carbon Steel 45° Lateral Tee Sizes 1/2″ – 48” image

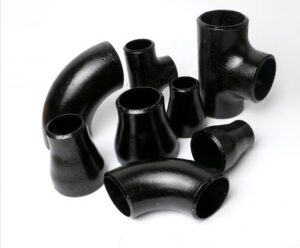

Type of ASTM A234 Carbon Steel pipe fittings

Size

ASTM A234 WPB Carbon Steel 90° Elbow
ASTM A234 WPB Carbon Steel 45° Elbow
ASTM A234 WPB Carbon Steel Long Radius Elbow
ASTM A234 WPB Carbon Steel Short Radius Elbow
ASTM A234 WPB Carbon Steel Reducing Elbow
ASTM A234 WPB Carbon Steel 3D Elbow
ASTM A234 WPB Carbon Steel 5D Elbow
ASTM A234 WPB Carbon Steel Tee (Equal & Unequal)
ASTM A234 WPB Carbon Steel Cross
ASTM A234 WPB Carbon Steel Reducing Crosses

ASTM A234 WPB Carbon Steel Pipe Cap
ASTM A234 WPB Carbon Steel Stub Ends (Long & Short)
ASTM A234 WPB Carbon Steel 180° LR Return Bends
ASTM A234 WPB Carbon Steel 180° SR Return Bends
ASTM A234 WPB Carbon Steel Pipe Bends
ASTM A234 WPB Carbon Steel End Caps
ASTM A234 WPB Carbon Steel Reducers
ASTM A234 WPB Carbon Steel Concentric Reducer
ASTM A234 WPB Carbon Steel Eccentric Reducer
ASTM A234 WPB Carbon Steel 45° Lateral Tee

Sizes 1/2″ – 48”

5. High Pressure Carbon Steel Socket Weld Pipe Fittings

Socket Weld Fittings are also called as high pressure fittings and used in various industries applications. These Socket Weld Fittings are attached to pipe with flanges and then assembled with stronger weld. Although Socket weld Pipe Fittings are widely used for small pipe whose nominal diameter is NPS4 or smaller.

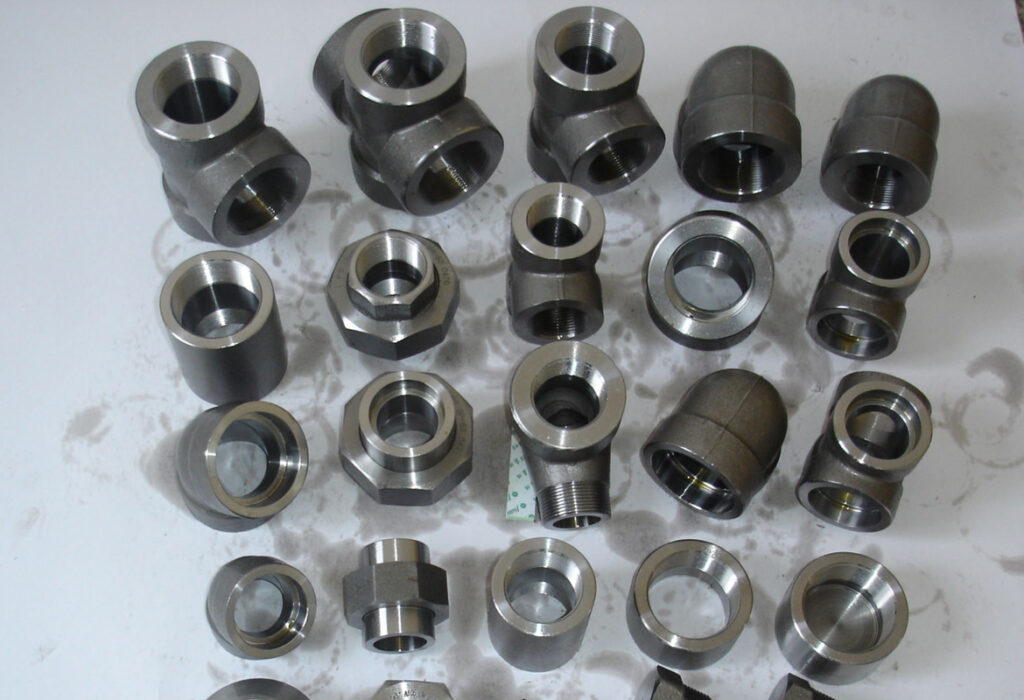

High Pressure Carbon Steel Socket Weld Pipe Fittings manufacturer

Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.

We are China manufacturer, China supplier, China factory, China wholesale and China exporter because we are manufacturing in China our Weld Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fitting, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, butt weld, which are made in China too.
