Butt Weld Eccentric Reducer
A Butt Weld Eccentric Reducer allows for connecting a large pipe to a smaller pipe by means of welding. It is mostly used in place of concentric reducers as they keep bottom of pipe unchanged in horizontal piping.
Product: | Butt Weld Reducer, Concentric Reducers, Eccentric Reducers |
Size: | 1/8″ NB TO 48″ NB |
| Wall Thickness: Sch.5S to Sch.XXS |
Material: | carbon steel ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 |
| Stainless Steel ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L |
| ALLOY STEEL ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 |
| Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500 |
2. Butt Weld Eccentric Reducer Standard
ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 | Buttwelding Ends |
ASME B16.28 | Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
NPS1 | NPS2 | OD1 | OD2 | H |
3/4 | 1/2 | 26.7 | 21.3 | 38 |
3/4 | 3/8 | 26.7 | 17.3 | 38 |
1 | 3/4 | 33.4 | 26.7 | 51 |
1 | 1/2 | 33.4 | 21.3 | 51 |
1-1/4 | 1 | 42.2 | 33.4 | 51 |
1-1/4 | 3/4 | 42.2 | 26.7 | 51 |
1-1/4 | 1/2 | 42.2 | 21.3 | 51 |
1-1/2 | 1-1/4 | 48.3 | 42.2 | 64 |
1-1/2 | 1 | 48.3 | 33.4 | 64 |
1-1/2 | 3/4 | 48.3 | 26.7 | 64 |
1-1/2 | 1/2 | 48.3 | 21.3 | 64 |
2 | 1-1/2 | 60.3 | 48.3 | 76 |
2 | 1-1/4 | 60.3 | 42.2 | 76 |
2 | 1 | 60.3 | 33.4 | 76 |
2 | 3/4 | 60.3 | 26.7 | 76 |
NPS1 | NPS2 | OD1 | OD2 | H |
2-1/2 | 2 | 73.0 | 60.3 | 89 |
2-1/2 | 1-1/2 | 73.0 | 48.3 | 89 |
2-1/2 | 1-1/4 | 73.0 | 42.2 | 89 |
2-1/2 | 1 | 73.0 | 33.4 | 89 |
3 | 2-1/2 | 88.9 | 73.0 | 89 |
3 | 2 | 88.9 | 60.3 | 89 |
3 | 1-1/2 | 88.9 | 48.3 | 89 |
3 | 1-1/4 | 88.9 | 42.2 | 89 |
3-1/2 | 3 | 101.6 | 88.9 | 102 |
3-1/2 | 2-1/2 | 101.6 | 73.0 | 102 |
3-1/2 | 2 | 101.6 | 60.3 | 102 |
3-1/2 | 1-1/2 | 101.6 | 48.3 | 102 |
3-1/2 | 1-1/4 | 101.6 | 42.2 | 102 |
4 | 3-1/2 | 114.3 | 101.6 | 102 |
4 | 3 | 114.3 | 88.9 | 102 |
NPS1 | NPS2 | OD1 | OD2 | H |
4 | 2-1/2 | 114.3 | 73.0 | 102 |
4 | 2 | 114.3 | 60.3 | 102 |
4 | 1-1/2 | 114.3 | 48.3 | 102 |
5 | 4 | 141.3 | 114.3 | 127 |
5 | 3-1/2 | 141.3 | 101.6 | 127 |
5 | 3 | 141.3 | 88.9 | 127 |
5 | 2-1/2 | 141.3 | 73.0 | 127 |
5 | 2 | 141.3 | 60.3 | 127 |
6 | 5 | 168.3 | 141.3 | 140 |
6 | 4 | 168.3 | 114.3 | 140 |
6 | 3-1/2 | 168.3 | 101.6 | 140 |
6 | 3 | 168.3 | 88.9 | 140 |
6 | 2-1/2 | 168.3 | 73.0 | 140 |
8 | 6 | 219.1 | 168.3 | 152 |
8 | 5 | 219.1 | 141.3 | 152 |
NPS1 | NPS2 | OD1 | OD2 | H |
8 | 4 | 219.1 | 114.3 | 152 |
8 | 3-1/2 | 219.1 | 101.6 | 152 |
10 | 8 | 273.0 | 219.1 | 178 |
10 | 6 | 273.0 | 168.3 | 178 |
10 | 5 | 273.0 | 141.3 | 178 |
10 | 4 | 273.0 | 114.3 | 178 |
12 | 10 | 323.8 | 273.0 | 203 |
12 | 8 | 323.8 | 219.1 | 203 |
12 | 6 | 323.8 | 168.3 | 203 |
12 | 5 | 323.8 | 141.3 | 203 |
14 | 12 | 355.6 | 323.8 | 330 |
14 | 10 | 355.6 | 273.0 | 330 |
14 | 8 | 355.6 | 219.1 | 330 |
14 | 6 | 355.6 | 168.3 | 330 |
16 | 14 | 406.4 | 355.6 | 356 |
NPS1 | NPS2 | OD1 | OD2 | H |
16 | 12 | 406.4 | 323.8 | 356 |
16 | 10 | 406.4 | 273.0 | 356 |
16 | 8 | 406.4 | 219.1 | 356 |
18 | 16 | 457.0 | 406.4 | 381 |
18 | 14 | 457.0 | 355.6 | 381 |
18 | 12 | 457.0 | 323.8 | 381 |
18 | 10 | 457.0 | 273.0 | 381 |
20 | 18 | 508.0 | 457.0 | 508 |
20 | 16 | 508.0 | 406.4 | 508 |
20 | 14 | 508.0 | 355.6 | 508 |
20 | 12 | 508.0 | 323.8 | 508 |
22 | 20 | 559.0 | 508.0 | 508 |
22 | 18 | 559.0 | 457.0 | 508 |
22 | 16 | 559.0 | 406.4 | 508 |
22 | 14 | 559.0 | 355.4 | 508 |
NPS1 | NPS2 | OD1 | OD2 | H |
24 | 22 | 610.0 | 559.0 | 508 |
24 | 20 | 610.0 | 508.0 | 508 |
24 | 18 | 610.0 | 457.0 | 508 |
24 | 16 | 610.0 | 406.4 | 508 |
26 | 24 | 660.0 | 610.0 | 610 |
26 | 22 | 660.0 | 559.0 | 610 |
26 | 20 | 660.0 | 508.0 | 610 |
26 | 18 | 660.0 | 457.0 | 610 |
28 | 26 | 711.0 | 660.0 | 610 |
28 | 24 | 711.0 | 610.0 | 610 |
28 | 20 | 711.0 | 508.0 | 610 |
28 | 18 | 711.0 | 457.0 | 610 |
30 | 28 | 762.0 | 711.0 | 610 |
30 | 26 | 762.0 | 660.0 | 610 |
30 | 24 | 762.0 | 610.0 | 610 |
NPS1 | NPS2 | OD1 | OD2 | H |
30 | 20 | 762.0 | 508.0 | 610 |
32 | 30 | 813.0 | 762.0 | 610 |
32 | 28 | 813.0 | 711.0 | 610 |
32 | 26 | 813.0 | 660.0 | 610 |
32 | 24 | 813.0 | 610.0 | 610 |
34 | 32 | 864.0 | 813.0 | 610 |
34 | 30 | 864.0 | 762.0 | 610 |
34 | 26 | 864.0 | 660.0 | 610 |
34 | 24 | 864.0 | 610.0 | 610 |
36 | 34 | 914.0 | 864.0 | 610 |
36 | 32 | 914.0 | 813.0 | 610 |
36 | 30 | 914.0 | 762.0 | 610 |
36 | 26 | 914.0 | 660.0 | 610 |
36 | 24 | 914.0 | 610.0 | 610 |
38 | 36 | 965.0 | 914.0 | 610 |
NPS1 | NPS2 | OD1 | OD2 | H |
38 | 34 | 965.0 | 864.0 | 610 |
38 | 32 | 965.0 | 813.0 | 610 |
38 | 30 | 965.0 | 762.0 | 610 |
38 | 28 | 965.0 | 711.0 | 610 |
38 | 26 | 965.0 | 660.0 | 610 |
40 | 38 | 1016.0 | 965.0 | 610 |
40 | 36 | 1016.0 | 914.0 | 610 |
40 | 34 | 1016.0 | 864.0 | 610 |
40 | 32 | 1016.0 | 813.0 | 610 |
40 | 30 | 1016.0 | 762.0 | 610 |
42 | 40 | 1067.0 | 1016.0 | 610 |
42 | 38 | 1067.0 | 965.0 | 610 |
42 | 36 | 1067.0 | 914.0 | 610 |
42 | 34 | 1067.0 | 864.0 | 610 |
42 | 32 | 1067.0 | 813.0 | 610 |
NPS1 | NPS2 | OD1 | OD2 | H |
42 | 30 | 1067.0 | 762.0 | 610 |
44 | 42 | 1118.0 | 1067.0 | 610 |
44 | 40 | 1118.0 | 1016.0 | 610 |
44 | 38 | 1118.0 | 965.0 | 610 |
44 | 36 | 1118.0 | 914.0 | 610 |
46 | 44 | 1168.0 | 1118.0 | 711 |
46 | 42 | 1168.0 | 1067.0 | 711 |
46 | 40 | 1168.0 | 1016.0 | 711 |
46 | 38 | 1168.0 | 965.0 | 711 |
48 | 46 | 1219.0 | 1168.0 | 711 |
48 | 44 | 1219.0 | 1118.0 | 711 |
48 | 42 | 1219.0 | 1067.0 | 711 |
48 | 40 | 1219.0 | 1016.0 | 711 |
NPS1 | NPS2 | OD1 | OD2 | H |
- Butt Weld Eccentric Reducers Dimensions as per ASME B16.9. All dimensions are in mm.
- While the figure illustrates a bell-shaped reducer, the use of a conical reducer is not prohibited.
Pipe Reducer Weight in KG, Schedule – Butt Weld Eccentric Reducer Weight
5. Price list of SCHEDULE 40 Butt Weld Eccentric Reducer
Estan Pipe Fittings is one of the manufacturers and suppliers of Buttweld Fittings from China. Our prices for Eccentric Reducer Buttweld Fittings are very reasonable.
Please contact us for the latest price list and available stock information along with your requirements. We maintain a stock of all standard items and export them at the best price for Butt Weld Eccentric Reducer.

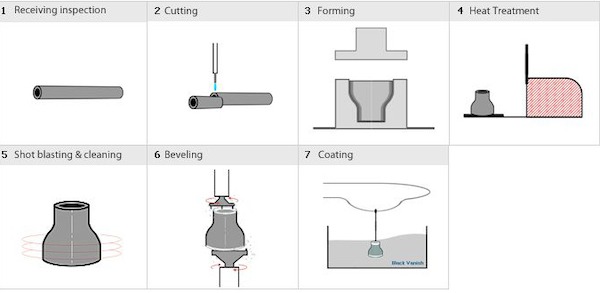

6. Pipe Reducer Process
Butt Weld Eccentric Reducer can be manufactured in different ways. Cold forming is the most used manufacturing process for seamless Eccentric reducers (welded reducers are produced with the single or double seam weld process).
PIPE REDUCER MANUFACTURING PROCESS-COLD FORMING
7. Packing of Butt Weld Eccentric Reducer
Estan Pipe Fittings emphasizes the packaging to ensure that there is no damage during transit to the Butt Weld Eccentric Reducers. Eccentric Reducers are packed in export standard plywood pallets/ free fumigation wooden case. They are marked with Grade, Lot No, Size, Degree, etc. You can also contact us for customized marking.
Surface: Light Oiling, Black Painting, Galvanizing, PE /3PE Anti-corrosion Coating
Packing: Export Standard Plywood Pallets/ Free Fumigation Wooden Case.
8. Butt Weld Eccentric Reducer HS Code
- 73072900 ECCENTRIC REDUCERS, A420WPL6, 8in x 6in, STD/XS, B.16.9 BW
- 73079190 3 X 2 ECCENTRIC REDUCER, BW, SEAMLESS, SCH.STD X SCH.XS, MATERIAL ASTM A234 GR.WPB ASME. B16.9 WITH MTC
- 73079390 TUBE OR PIPE FITTINGS SEAMLESS REDUCER ECCENTRIC BUTT WELD ASTM A 403 WPS 316 LANSI B 16.9, DN50 S10S X 25 S10S
- 73079990 ALLOY STEEL FITTINGS (A234 WP11) – REDUCER BW ECCENTRIC 10in x 6in 40/STD
- 73072300 PIPE FITTINGS – REDUCER ECCENTRIC CS A420 WPL6 WELD 20 X 16 SCH 30/STD X SCH STD BW ASME B16.9
