100% Quality Guarantee on All Fittings! Free samples delivery.

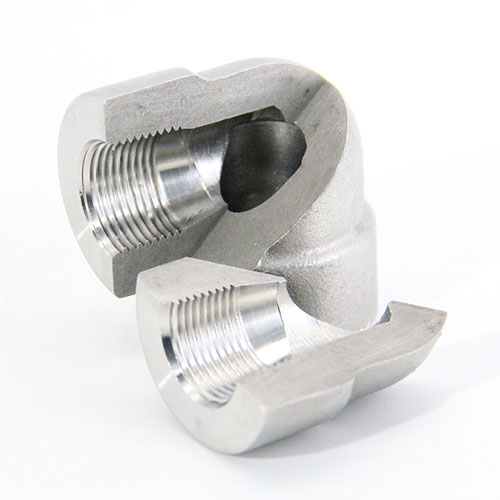

Threaded 90 Degree Elbow NPT BSPT

Size: 1/4″~4″
Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
Standards: ASME 16.11
Production capacity: 10000 Pieces per Month
Certificate: CE / ISO / SGS
Port: Shanghai Port
Payment Term: L/C, T/T
Packing: Export standard Plywood Pallets/ free fumigation wooden case.

Please send emails to sales@steelfittings-flange.com for prices.

Description

ASME B16.11 Threaded 90 Degree Elbow Manufacturer & Exporter.

Estan pipe fittings is a premier manufacturer and supplier in China. Based on different materials, our threaded elbows can be sorted into carbon steel threaded elbow, stainless steel threaded elbow, alloy steel threaded elbow, high-strength steel threaded elbow, low-temperature steel threaded elbow, etc.

These products have passed ISO 9001-2015, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification, and are used by NIGC, Petrobras, Pemex, CNPC, Sinopec, and CNOOC. Our threaded elbows have been exported to over 36 countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, etc.

ASME B16.11 Threaded 90 Degree Elbow Standard Specification

Dimensions ASME 16.11
Size 1/8″ NPS TO 4″ NPS
Class 2000 LBS, 3000 LBS, 6000 LBS
Value-Added Services Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Material Grades Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel, Nickel Alloy Steel, Low-temperature Steel.

Threaded 90 Degree Elbow Material Specification

Stainless Steel Threaded Elbow: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Threaded Elbow: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Threaded Elbow: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Threaded Elbow: ASTM A350, LF2, LF3
Alloy Steel Threaded Elbow: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Threaded Elbow: ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Threaded Elbow: ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In the case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. we can also be available to supply customized services for special requests.

Quality Assurance

At Estan pipe fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
