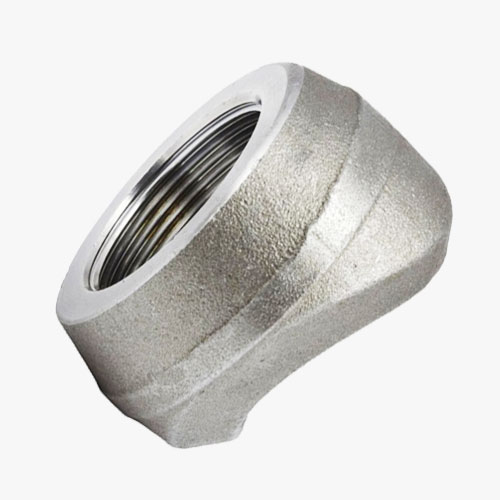

Name: Threadolet MSS-SP97 - ESTAN PIPE FITTINGS CO., LTD
Brand: simple

Description

MSS-SP97 Threadolet Manufacturer & Exporter.

Estan pipe fittings is a premier Threadolet manufacturer and supplier in China. Based on different materials, our Threadolet can be sorted into carbon steel Threadolet, stainless steel Threadolet, alloy steel Threadolet, high-strength steel Threadolet, low-temperature steel Threadolet, etc.

These products have passed ISO 9001-2015, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification, and are used by NIGC, Petrobras, Pemex, CNPC, Sinopec, and CNOOC. Our Threaded Outlets have been exported to over 36 countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India ect.

MSS-SP97 Threadolet Standard Specification

Dimensions	MSS-SP97, ASME B31.1
Size	1/8″ NPS TO 4″ NPS
Class	3000LB, 6000LB (STD, SCH80/XS, SCH160)
Value Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades	carbon steel Threadolet, stainless steel Threadolet, alloy steel Threadolet, high-strength steel Threadolet, low-temperature steel Threadolet.

Threadolet Material Specification

Stainless Steel Threadolet: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Threadolet: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Threadolet: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low-Temperature Carbon Steel Threadolet: ASTM A350, LF2, LF3
Alloy Steel Threadolet: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Threadolet: ASTM SB 61,SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Steel Threadolet: ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.

Quality Assurance

At Estan pipe fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions, and quality conformity of products.
