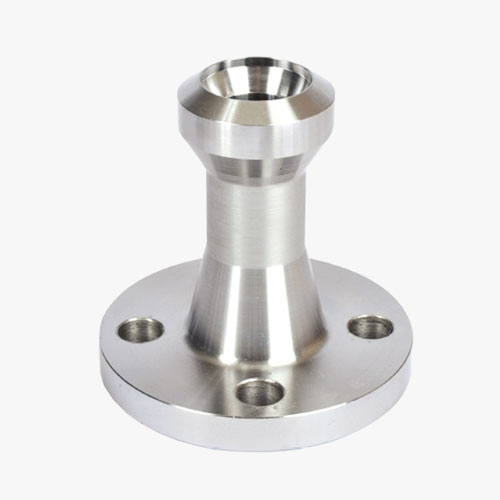

Flanged Nipple Outlets, Nipolets, Nipple Outlets, Branch Outlets

Estan pipe fittings is a premier flanged nipple Outlets manufacturer and supplier in China. Based on different materials, our flange nipple outlets can be sorted into carbon steel flange nipple outlets, stainless steel flange nipple outlets, alloy steel flange nipple outlets, high-strength steel flange nipple outlets, low-temperature steel flange nipple outlets, etc.

These products have passed ISO 9001-2015, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification, and are used by NIGC, Petrobras, Pemex, CNPC, Sinopec, and CNOOC. Our flange nipple outlets have been exported to over 36 countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, etc.

Flange Nipple Outlets Standard Specification

Dimensions	ASME B31.1 & ASME B16.5, Threaded ends per ASME B1.20.1 • Beveled ends per ASME B16.25
Size	1/2″ NPS TO 24″ NPS
Class	150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Value Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades	Stainless Steel, Alloy Steel, Duplex steel Nickel Alloys, Low temperature, Carbon Steel.

Flanged Nipple Outlets Material Specification

Stainless Steel Flange Nipple Outlets: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Flange Nipple Outlets: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Flange Nipple Outlets: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Flange Nipple Outlets: ASTM A350, LF2, LF3
Alloy Steel Flange Nipple Outlets: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Flange Nipple Outlets: ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Steel Flange Nipple Outlets: ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. we are also available to supply the customized service for special requests.

Quality Assurance

At Estan pipe fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
