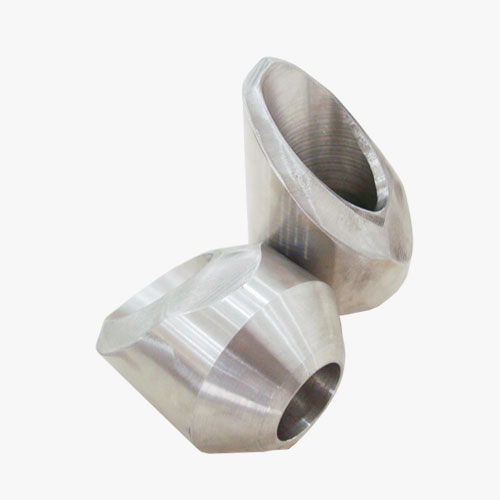

Name: Elbow Outlet MSS-SP97 - ESTAN PIPE FITTINGS CO., LTD
Availability: InStock

Description

Elbow Outlet MSS-SP97 Manufacturer & Exporter.

Estan pipe fittings is a premier Elbow Outlets manufacturer and supplier in China. Based on different materials, our elbow outlets can be sorted into carbon steel elbow outlets, stainless steel elbow outlets, alloy steel elbow outlets, high-strength steel elbow outlets, low-temperature steel elbow outlets, etc.

These products have passed ISO 9001-2015, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification, and are used by NIGC, Petrobras, Pemex, CNPC, Sinopec, and CNOOC. Our elbow outlets have been exported to over 36 countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India etc.

MSS-SP97 Elbow Outlets Standard Specification

Dimensions	MSS-SP97, ASME B31.1
Size	1/8″ NPS TO 4″ NPS
Class	3000LB, 6000LB (SCH80/XS, SCH160)
Value-Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades	Stainless SLaterall, Alloy SLaterall, Duplex, Nickel Alloys, Low-temperature SLaterall, Carbon SLaterall, Cupro Nickel

Elbow Outlet MSS-SP97 Material Specification

Stainless Steel Elbow Outlets: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Elbow Outlets: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Elbow Outlets: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Elbow Outlets:ASTM A350, LF2, LF3
Alloy Steel Elbow Outlets: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Elbow Outlets: ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Steel Elbow Outlets: ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Elbow Outlet MSS-SP97 Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.

Elbow Outlet MSS-SP97 Quality Assurance

At Estan pipe fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions, and quality conformity of products.
