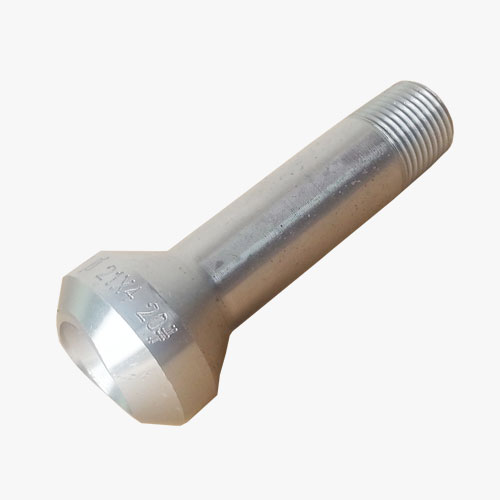

ASTM A105 Nipolet MSS-SP97
Size: 1/2″~2″
Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
Standards: MSS-SP97, ASME B31.1
Supply Ability: 10000 Pieces per Month
Certificate: CE / ISO / SGS
Port: Shanghai Port
Payment Term: L/C, T/T
Packing: Export standard Plywood Pallets/ free fumigation wooden case.
Please send emails to sales@steelfittings-flange.com for prices.
Description
MSS-SP97 ASTM A105 Nipolet Manufacturer & Exporter.
Estan pipe fittings is a premier ASTM A105 Nipolet manufacturer and supplier in China. Based on different materials, our Nipolet can be sorted into carbon steel Nipple outlets, stainless steel Nipple outlets, alloy steel Nipple outlets, high-strength steel Nipple outlets, low-temperature steel Nipple outlets, etc.
These products have passed ISO 9001-2015, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API certification, and are used by NIGC, Petrobras, Pemex, CNPC, Sinopec, and CNOOC. Our Nipple outlets have been exported to over 36 countries, including Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India ect.
MSS-SP97 Nipolet Standard Specification
| Dimensions | MSS-SP97, ASME B31.1 |
| Size | 1/2″ NPS TO 2″ NPS |
| Class | STD, SCH80/XS, SCH160, XXH |
| Value-Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Low-Temperature Carbon Steel. |
Nipple Outlets Material Specification
Stainless Steel Nipple Outlets: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Nipple Outlets: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Nipple Outlets: ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Nipple Outlets:ASTM A350, LF2, LF3
Alloy Steel Nipple Outlets: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Nipple Outlets: ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Steel Nipple Outlets: ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Marking & Packing
ASTM A105 Nipolet is packaged to ensure that there is no damage during transit. In the case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.
Quality Assurance
At Estan pipe fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions, and quality conformity of products.
Test Certificates
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
